MVC Model2: DB 연동하기

	Views : 사용자	Controller(Servlet) : 중개자	Model : 디비연결	MyBatis
상품보기	go.html	ControllerService /  CommandInter, SangpumImpl	MessageModel /  SangpumDto, SqlMapConfig,	Configuration, DataMapper db.properties





ControllerService.java

package pack.controller;

import java.io.IOException;
import java.util.StringTokenizer;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("*.do")
public class ControllerService extends HttpServlet {
	private static final long serialVersionUID = 1L;


	protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
		//방법1: parameter 사용
		//String command = request.getParameter("command");

		//방법2: 파일명 요청으로 사용
		String ss= request.getRequestURI();
		//System.out.println("ss: "+ss);//ss: /wmvc4sangpum/sang.do
		int idx = ss.lastIndexOf('/');
		StringTokenizer st = new StringTokenizer(ss.substring(idx+1),".");
		ss = st.nextToken();
		//System.out.println("ss: "+ss); //ss: sang //ss: jikwon

        CommandInter inter = null;
		String viewName = "/WEB-INF/views/";
		String command = ss;



앞에선 parameter로 값을 받아와서 처리했었는데

이번엔 아예 파일명자체로 처리해본다.

(이게 더 Spring에 가까운 방법)





CommandInter.java

package pack.controller;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public interface CommandInter {
	String showData(HttpServletRequest request, HttpServletResponse response) throws Exception;

}



SangpumImpl.java

package pack.controller;

import java.util.ArrayList;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import pack.model.SangpumDto;
import pack.model.SangpumModel;

public class SangpumImpl implements CommandInter{
//Model과 통신하기 위한 Controller 영역 내 클래스
@Override
public String showData(HttpServletRequest request, HttpServletResponse response) throws Exception {
SangpumModel sangpumModel = new SangpumModel(); // 싱글톤을 써야함

ArrayList<SangpumDto> list = (ArrayList<SangpumDto>)sangpumModel.selectDataAll();
request.setAttribute("datas", list);
return "show.jsp";
}

}



모델로 넘어가서 DB와 연동된 값을 가지고 오자.





DTO주머니

SangpumDto.java

package pack.model;

public class SangpumDto {
	private String code, sang, su, dan;

	public String getCode() {
		return code;
	}

	public void setCode(String code) {
		this.code = code;
	}

	public String getSang() {
		return sang;
	}

	public void setSang(String sang) {
		this.sang = sang;
	}

	public String getSu() {
		return su;
	}

	public void setSu(String su) {
		this.su = su;
	}

	public String getDan() {
		return dan;
	}

	public void setDan(String dan) {
		this.dan = dan;
	}


}



세션 연

SqlMapConfig.java

package pack.model;

import java.io.Reader;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;


public class SqlMapConfig {
	public static SqlSessionFactory sqlSession;  //DB의 SQL명령을 실행시킬 때 필요한 메소드를 갖고 있다.

	  static{
	     String resource = "pack/mybatis/Configuration.xml";
	     try {
	         Reader reader = Resources.getResourceAsReader(resource);
	         sqlSession = new SqlSessionFactoryBuilder().build(reader);
	         reader.close();
	     } catch (Exception e) {
	     System.out.println("SqlMapConfig 오류 : " + e);
	  }
	}

	public static SqlSessionFactory getSqlSession(){
	     return sqlSession;
	  }

}



SangpumModel.java

package pack.model;

import java.util.List;

import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;

public class SangpumModel {
	private SqlSessionFactory factory = SqlMapConfig.getSqlSession();

	public List<SangpumDto> selectDataAll(){
		List<SangpumDto> list = null;

		SqlSession session = factory.openSession();
		list = session.selectList("selectDataAll");
		session.close();

		return list;
	}
}





Mybatis



db.properties

driver=org.mariadb.jdbc.Driver
url=jdbc:mariadb://localhost:3306/test
username=root
password=123



Configuration.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
 <properties resource="pack/mybatis/db.properties" />

 <environments default="dev">
  <environment id="dev">
   <transactionManager type="JDBC" />
   <dataSource type="POOLED">
    <property name="driver" value="${driver}" />
    <property name="url" value="${url}" />
    <property name="username" value="${username}" />
    <property name="password" value="${password}" />
   </dataSource>
  </environment>
 </environments>
 <mappers>
  <mapper resource="pack/mybatis/DataMapper.xml" />
 </mappers>
</configuration>



DataMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="dev">

 <select id="selectDataAll" resultType="pack.model.SangpumDto">
  select * from sangdata order by code asc
 </select>
</mapper>







다시 Controller에게 돌아가자

try {
			if(command.equals("sang")) {
				inter = new SangpumImpl();
				viewName += inter.showData(request, response);
				request.getRequestDispatcher(viewName).forward(request, response);
			}else if(command.equals("jikwon")){
				//....
			}else {
				viewName = "error.html";
				response.sendRedirect(viewName);
			}
		} catch (Exception e) {
			System.out.println("service err: "+e);
		}

	}



포워드로 값을 받아온다.

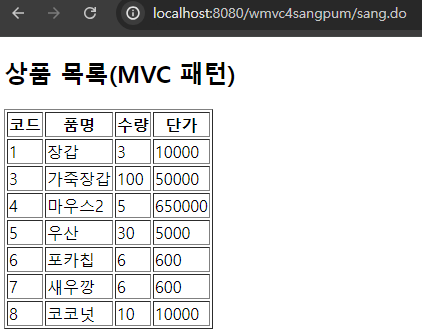

출력결과
